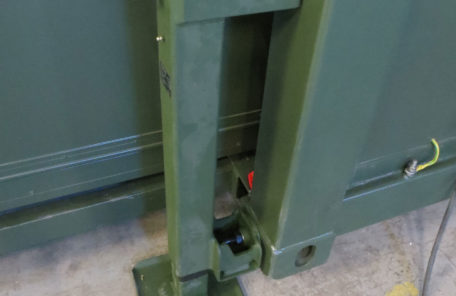

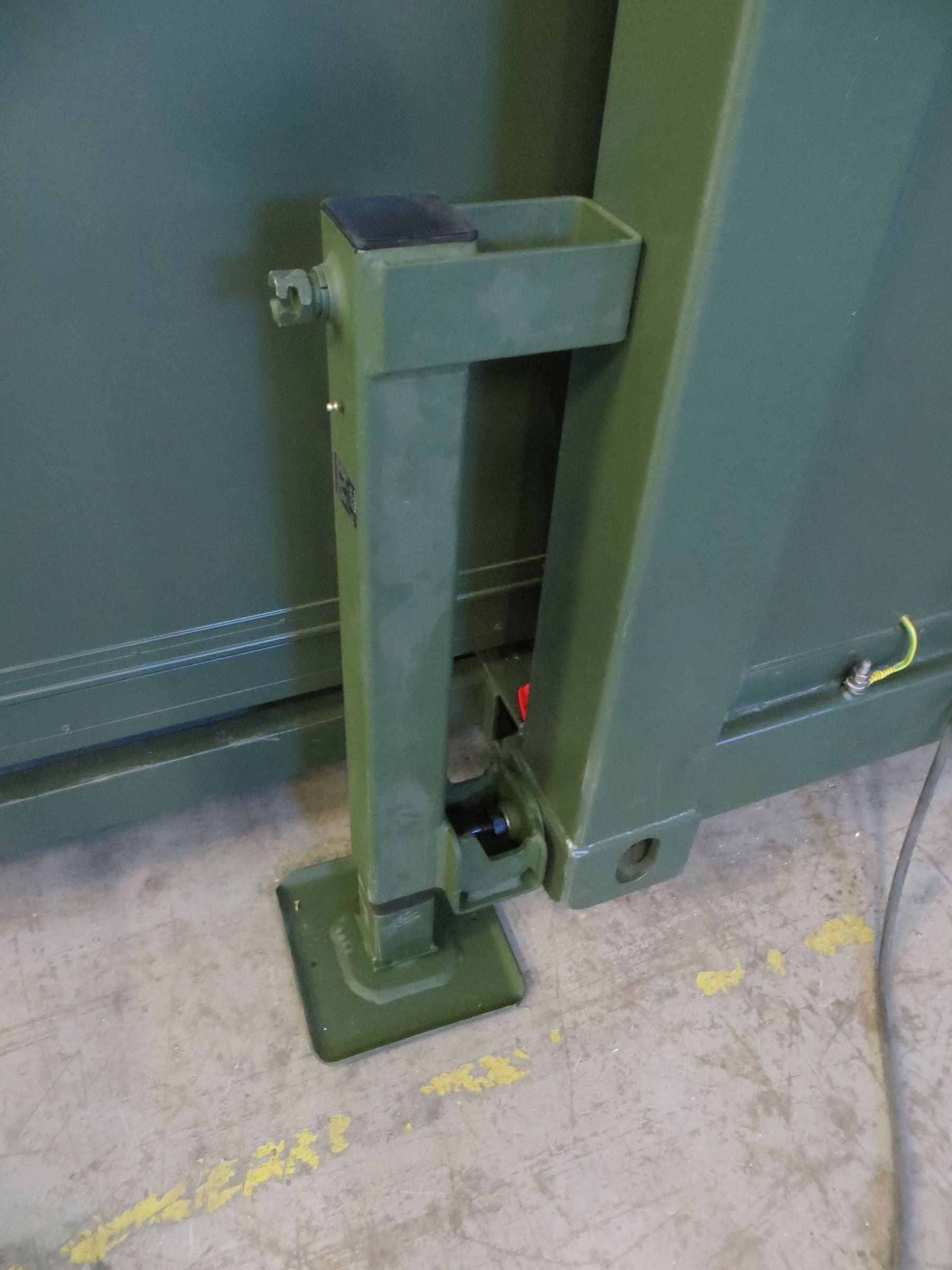

Levelling jacks

Description:

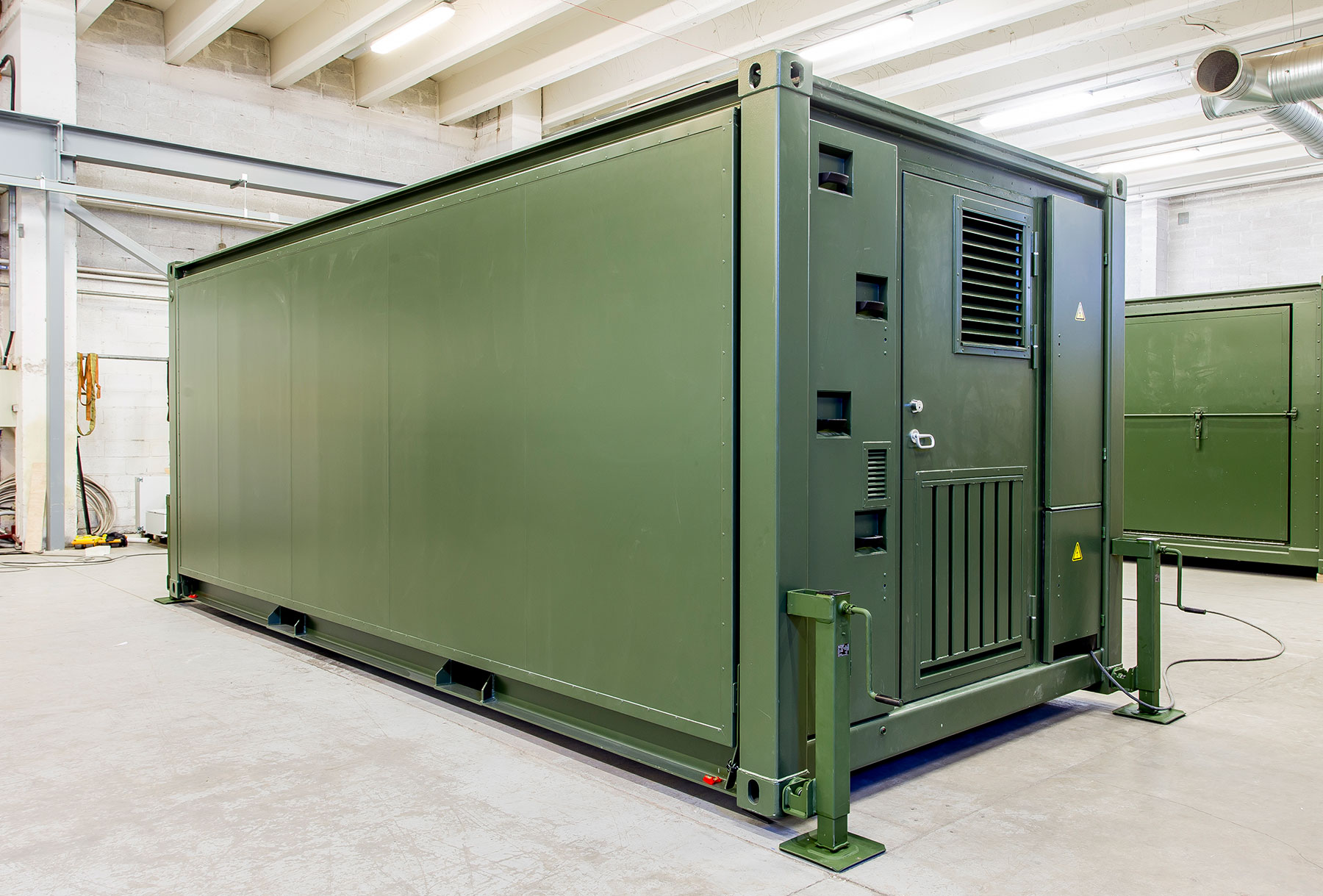

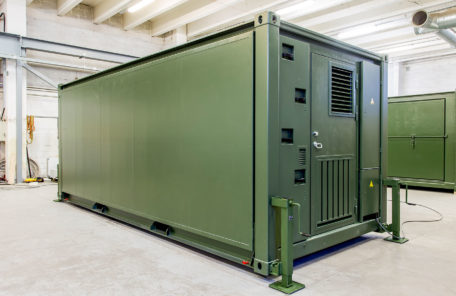

Levelling supports for a maximum lifting height of 600 mm and maximum system carrying capacities up to 16 t (dynamic) and 26 t (static). Levelling supports are used on containers which require precise alignment on the ground, so that they can be linked up to form larger functional units (e.g., mobile hospitals, encampments).

  • Levelling supports for DIN ISO 1161 corners, with encased spindles
  • Plug-in levelling support
  • Levelling supports integrated in corner post and running through ISO-corner
  • Attachable levelling support
  • Fold-up levelling support
  • Jack-type levelling support
  • Base frame

Types of Operation

  • Manual operation by hand ratchet/spanner/crank
  • Individual 24 VDC electric motor drive with or without position control also available for 400 VAC, 230 VAC
  • Position control precision: +/- 0.1 degrees
  • Safety shutdown when inclination exceeds 3.5 degrees
  • Lifting action parallel to ground possible
  • Automatic inclination offset to zero degree

PDF files

Levelling jacks 8251.10 Levelling jacks 2724.25 Levelling jacks 2930 Levelling jacks 2931 Levelling jacks 2724.10 Levelling jacks 2724
